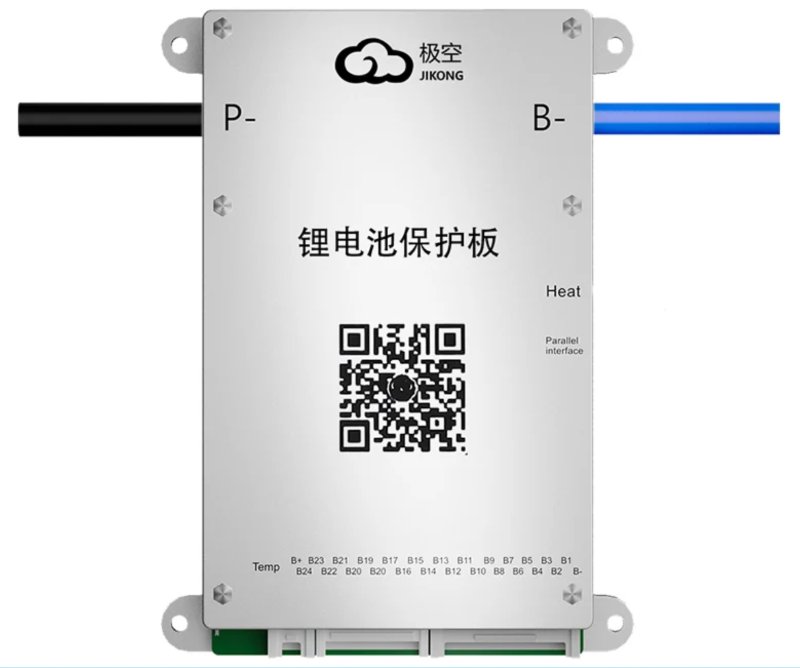

JK-BD4A17S4P - 8-17s 40A SMART BMS
In Stock₹1,775/ PCS
Minimum Order: 1 units
JKBMS JK-BD4A17S4P | 40A Compact BMS 8S-17S | LiFePO4 Li-ion LTO | 0.4A Active Balance + Bluetooth + UART
1

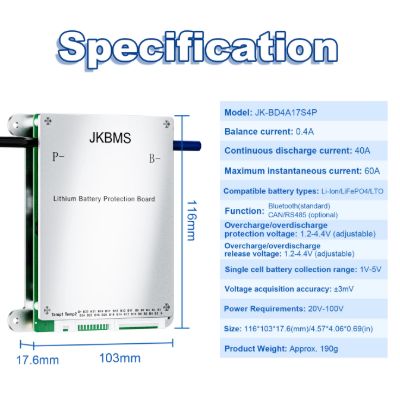

Technical Specifications
Cell Configuration8S – 17S (24V – 51V)
Continuous Current40A
Active Balance Current0.4A
Standard CommunicationBluetooth + UART (LCD display port)
Optional Add-onsRS485 / CAN
ProtectionOver-charge, Over-discharge, Over-current, Short-circuit, Over/Under-temperature
Description
The JK-BD4A17S4P is a compact 40A BMS covering the 8S–17S voltage range (24V–51V) — designed for e-bike battery packs, light electric scooters, and small backup power systems in the light-load category. Bluetooth and UART for LCD display monitoring are built in; RS485 and CAN are available as optional add-ons.
Quick Specs
Cell Configuration
8S – 17S (24V – 51V)
Continuous Current
40A
Active Balance Current
0.4A
Standard Communication
Bluetooth + UART (LCD display port)
Product Overview
Complete product information
The JK-BD4A17S4P is a compact 40A BMS covering the 8S–17S voltage range (24V–51V) — designed for e-bike battery packs, light electric scooters, and small backup power systems in the light-load category. Bluetooth and UART for LCD display monitoring are built in; RS485 and CAN are available as optional add-ons.
Genuine jk-bms-smart from Amcell
Key Features
Applications
The JK-BD4A17S4P - 8-17s 40A SMART BMS is widely used in various high-performance applications:
1
E-bike battery packs (36V–48V, light load)
2
Light electric scooters
3
Small backup power systems (24V–51V)
4
OEM manufacturers of 24V–51V 40A compact lithium battery packs
