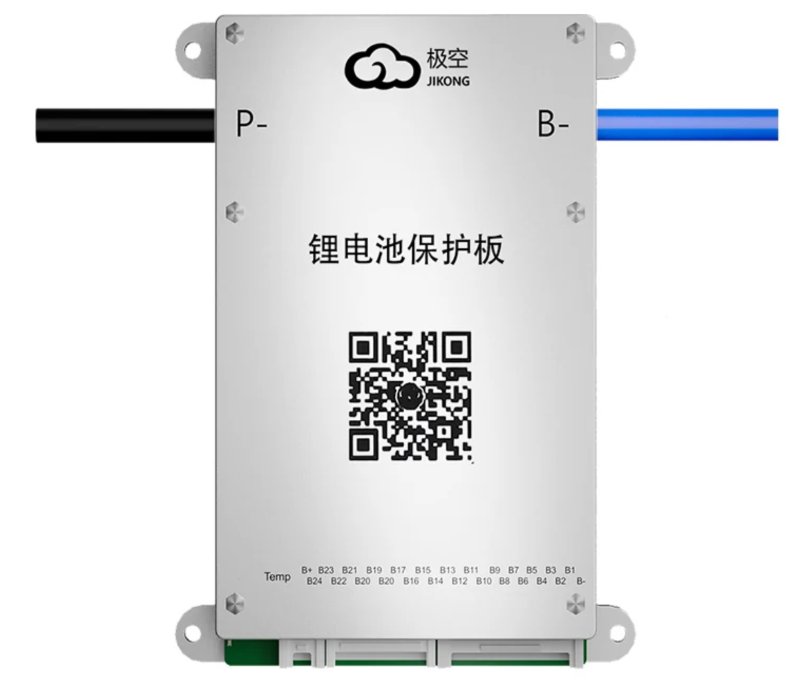

JK-BD6A20S6P - 8-20s 60A SMART BMS
In Stock₹2,348/ PCS
Minimum Order: 1 units
JKBMS JK-BD6A20S6P | 60A Smart BMS for Light E-Bike & 60V Systems | 7S-20S LiFePO4 Li-ion | 0.6A Active Balanc
1

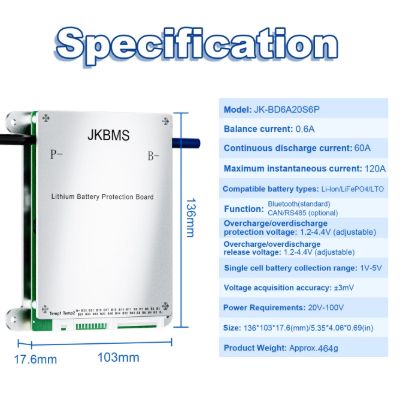

Technical Specifications
Cell Configuration8S – 20 (24V – 60V)
Continuous Current60A
Active Balance Current0.6A
Standard CommunicationBluetooth + UART (LCD display port)
Optional Add-onsRS485 / CAN
Compatible ChemistryLiFePO4, Li-ion, LTO
Description
The JK-BD6A20S6P covers the full 7S–20S voltage range (24V–72V) at 40A continuous current — designed for e-bikes, electric skateboards, and small backup power systems running up to 72V. Bluetooth and UART for LCD display monitoring are built in; RS485 and CAN are available as optional add-ons.
Quick Specs
Cell Configuration
8S – 20 (24V – 60V)
Continuous Current
60A
Active Balance Current
0.6A
Standard Communication
Bluetooth + UART (LCD display port)
Product Overview
Complete product information
The JK-BD6A20S6P covers the full 7S–20S voltage range (24V–72V) at 40A continuous current — designed for e-bikes, electric skateboards, and small backup power systems running up to 72V. Bluetooth and UART for LCD display monitoring are built in; RS485 and CAN are available as optional add-ons.
Genuine jk-bms-smart from Amcell
Key Features
Applications
The JK-BD6A20S6P - 8-20s 60A SMART BMS is widely used in various high-performance applications:
1
E-bikes (48V–60V, light load)
2
Electric skateboards & personal mobility (up to 60V)
3
Small backup power systems (24V–60V)
4
OEM manufacturers of 24V–60V 60A compact lithium battery packs
