JK-B15A24S - 2-26s 15A Active Balancer
In Stock₹13,500/ PCS
Minimum Order: 1 units
JKBMS Active Balancer JK-B15A24S — 15A 2~24S Industrial Battery Equalizer
1

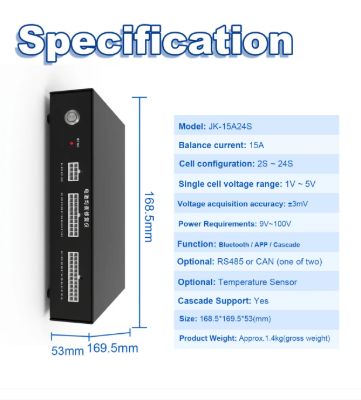

Technical Specifications
Cell count2S ~ 24S
Balancing current15A (constant)
Cell voltage range1V ~ 5V
Voltage accuracy±3mV
External power supplyDC 9~100V
Dimensions175 × 155 × 45 mm
Description
The JK-B15A24S is the industrial flagship of the JKBMS Active Balancer lineup — and the most powerful. Delivering a constant 15A balancing current via ultracapacitor energy transfer, it is engineered for the most demanding large-format battery systems where speed of equalization directly impacts system performance and uptime.
Quick Specs
Cell count
2S ~ 24S
Balancing current
15A (constant)
Cell voltage range
1V ~ 5V
Voltage accuracy
±3mV
Product Overview
Complete product information
The JK-B15A24S is the industrial flagship of the JKBMS Active Balancer lineup — and the most powerful. Delivering a constant 15A balancing current via ultracapacitor energy transfer, it is engineered for the most demanding large-format battery systems where speed of equalization directly impacts system performance and uptime.
Genuine balancer-jk from Amcell
Key Features
15A constant active balancing current — fastest in the JKBMS lineup, maximum equalization speed
Supports 2~24S configurations — LiFePO4, Li-ion, LiPo, LTO, lead-acid
Cascade capable — expand beyond 24S by linking multiple units
Power-on switch — manual control over balancer activation
High-precision voltage monitoring — ±3mV accuracy per cell
Bluetooth connectivity — monitor and configure via mobile app
Optional RS485 or CAN communication
Dimensions: 175 × 155 × 45 mm | Weight: 2kg
₹13,500/ PCS
1
