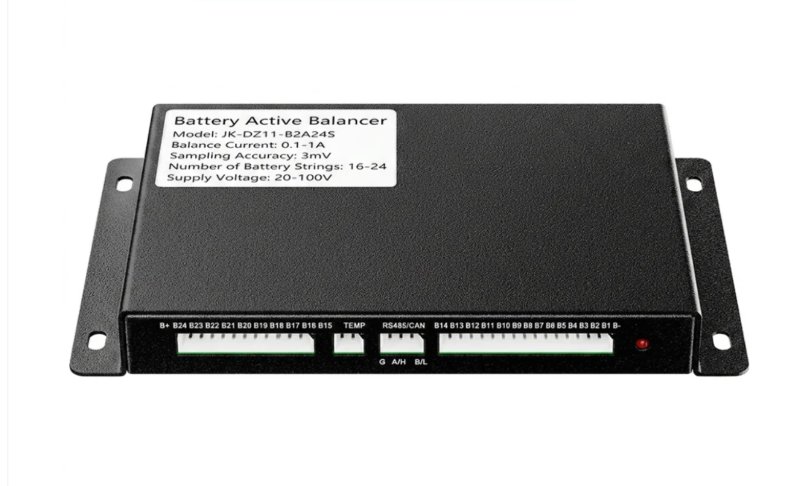

JK-DZ11B2A24S - RS485 2-24s 2A Active Balancer
In Stock₹2,935/ PCS
Minimum Order: 1 units
JKBMS Active Balancer JK-DZ11B2A24S — 2A 2~24S RS485 Battery Equalizer with Cascade
1

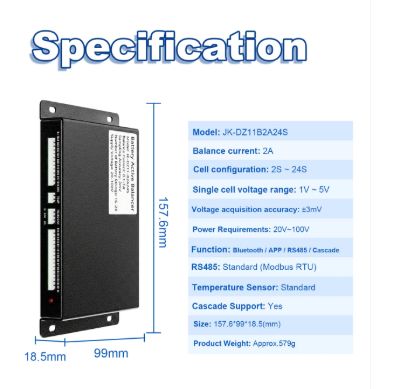

Technical Specifications
Cell count2S ~ 24S
Balancing current2A (constant)
Cell voltage range1V ~ 5V
Voltage accuracy±3mV
External power supplyDC 20~100V (via V+ / V− terminals)
RS485Standard built-in
Description
The JK-DZ11B2A24S is the RS485-standard flagship of the JKBMS 2A active balancer lineup, purpose-built for large-format 2 to 24 series battery systems. With RS485 communication built in as standard, it integrates seamlessly with inverters, BMS controllers, SCADA systems, and energy management platforms — right out of the box, no optional add-ons required.
Quick Specs
Cell count
2S ~ 24S
Balancing current
2A (constant)
Cell voltage range
1V ~ 5V
Voltage accuracy
±3mV
Product Overview
Complete product information
The JK-DZ11B2A24S is the RS485-standard flagship of the JKBMS 2A active balancer lineup, purpose-built for large-format 2 to 24 series battery systems. With RS485 communication built in as standard, it integrates seamlessly with inverters, BMS controllers, SCADA systems, and energy management platforms — right out of the box, no optional add-ons required.
Genuine balancer-jk from Amcell
Key Features
RS485 communication — standard built-in, no extra cost or configuration

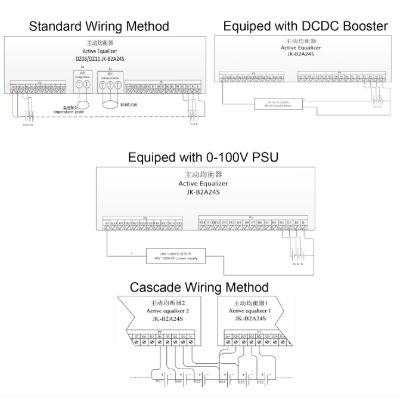

Cascade capable — expand beyond 24S by linking multiple units
Standard temperature sensor input — included as standard
2A constant active balancing current — independent of cell voltage delta
Supports 2~24S configurations — LiFePO4, Li-ion, LiPo, LTO, lead-acid
High-precision voltage monitoring — ±3mV accuracy per cell
Bluetooth connectivity — monitor and configure via mobile app
Optional CAN communication (select at order, replaces RS485)
Applications
The JK-DZ11B2A24S - RS485 2-24s 2A Active Balancer is widely used in various high-performance applications:
1
Large residential energy storage systems (ESS) — 48V, 72V, 96V+
2
Commercial and industrial battery systems with RS485 integration
3
Solar power stations requiring SCADA or BMS communication
4
High-voltage backup power systems
5
Multi-unit cascade installations beyond 24S
