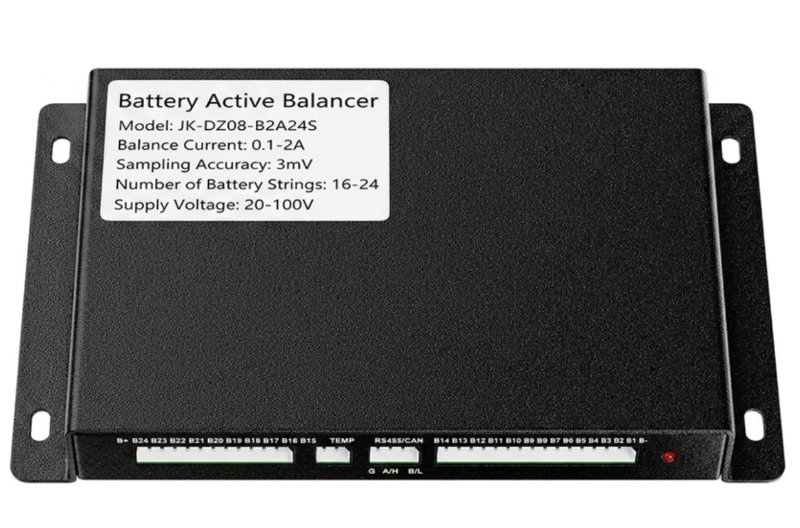

JK-DZ08B2A24S - CAN 2-24s 2A Active Balancer
In Stock₹2,935/ PCS
Minimum Order: 1 units
JKBMS Active Balancer JK-DZ08B2A24S — 2A 2~24S CAN Battery Equalizer with Cascade
1

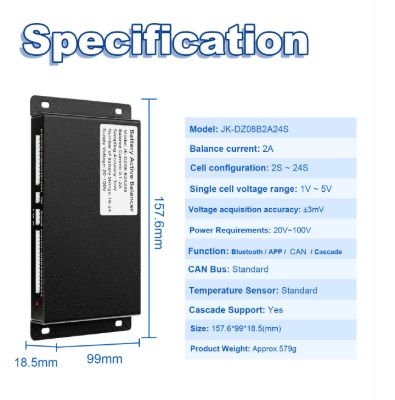

Technical Specifications
Cell count2S ~ 24S
Balancing current2A (constant)
Cell voltage range1V ~ 5V
Voltage accuracy±3mV
External power supplyDC 20~100V
CANCAN: Standard built-in
Description
The JK-DZ08B2A24S is the CAN-standard flagship of the JKBMS 2A active balancer lineup, built for 2 to 24 series battery systems that require native CAN bus integration. With CAN communication built in as standard, it connects directly to inverters, BMS controllers, and energy management systems that use CAN protocol — no adapters, no extra cost.
Quick Specs
Cell count
2S ~ 24S
Balancing current
2A (constant)
Cell voltage range
1V ~ 5V
Voltage accuracy
±3mV
Product Overview
Complete product information
The JK-DZ08B2A24S is the CAN-standard flagship of the JKBMS 2A active balancer lineup, built for 2 to 24 series battery systems that require native CAN bus integration. With CAN communication built in as standard, it connects directly to inverters, BMS controllers, and energy management systems that use CAN protocol — no adapters, no extra cost.
Genuine balancer-jk from Amcell
Key Features
CAN communication — standard built-in, compatible with CAN-based inverters and BMS systems
Cascade capable — expand beyond 24S by linking multiple units
Standard temperature sensor input — included as standard
2A constant active balancing current — real-time energy transfer, independent of voltage delta
Supports 2~24S configurations — LiFePO4, Li-ion, LiPo, LTO, lead-acid
High-precision voltage monitoring — ±3mV accuracy per cell
Bluetooth connectivity — monitor and configure via mobile app
Optional RS485 communication (select at order, replaces CAN)
Applications
The JK-DZ08B2A24S - CAN 2-24s 2A Active Balancer is widely used in various high-performance applications:
1
Large residential ESS with CAN-compatible inverters (e.g. Deye, Growatt, SolarEdge
2
Commercial battery systems with CAN BMS integration
3
EV and high-voltage packs requiring CAN communication
4
Multi-unit cascade installations beyond 24S
