JK-B5A24S - 2-24s 5A Active Balancer
In Stock₹10,050/ PCS
Minimum Order: 1 units
JKBMS Active Balancer JK-B5A24S — 5A 2~24S Battery Equalizer for Commercial ESS
1

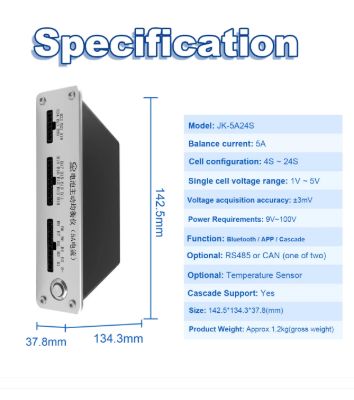

Technical Specifications
Cell count2S ~ 24S
Balancing current5A (constant)
Cell voltage range1V ~ 5V
Voltage accuracy±3mV
External power supplyDC 9~100V
CascadeCascade
Description
The JK-B5A24S is built for demanding commercial and industrial battery applications where fast, continuous cell balancing is non-negotiable. Delivering a constant 5A balancing current via ultracapacitor energy transfer, it handles large-capacity packs with ease — keeping every cell in tight voltage alignment and the system running at peak efficiency.
Quick Specs
Cell count
2S ~ 24S
Balancing current
5A (constant)
Cell voltage range
1V ~ 5V
Voltage accuracy
±3mV
Product Overview
Complete product information
The JK-B5A24S is built for demanding commercial and industrial battery applications where fast, continuous cell balancing is non-negotiable. Delivering a constant 5A balancing current via ultracapacitor energy transfer, it handles large-capacity packs with ease — keeping every cell in tight voltage alignment and the system running at peak efficiency.
Genuine balancer-jk from Amcell
Key Features
5A constant active balancing current — high-speed equalization for large-capacity cells
Supports 2~24S configurations — LiFePO4, Li-ion, LiPo, LTO, lead-acid

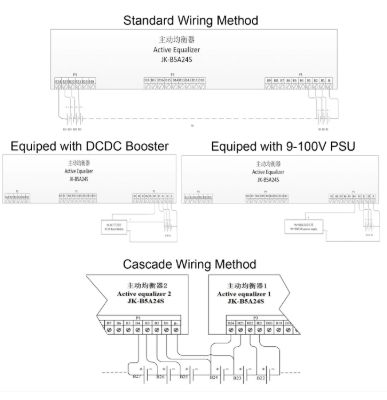

Cascade capable — expand beyond 24S by linking multiple units
Power-on switch — manual control over balancer activation
High-precision voltage monitoring — ±3mV accuracy per cell
Bluetooth connectivity — monitor and configure via mobile app
Optional RS485 or CAN communication
Dimensions: 142.5 × 134.3 × 37.8 mm | Weight: 1.4kg
Applications
The JK-B5A24S - 2-24s 5A Active Balancer is widely used in various high-performance applications:
1
Commercial energy storage systems (ESS) — large-format LiFePO4 packs
2
Industrial backup power with high-capacity cells
3
Solar power stations requiring fast balancing
4
Large-capacity battery pack recovery and maintenance
5
Multi-unit cascade installations beyond 24S
