JK-B4A24S - 2-24s 4A Active Balancer
In Stock₹3,800/ PCS
Minimum Order: 1 units

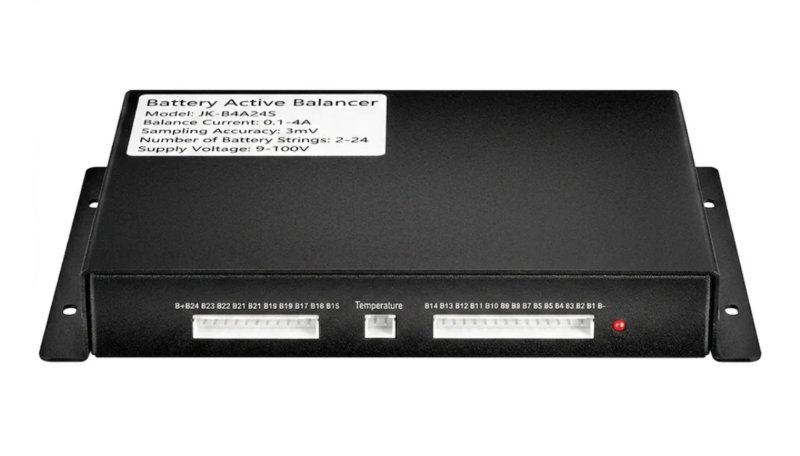

JKBMS Active Balancer JK-B4A24S — 4A 2~24S Battery Equalizer
1

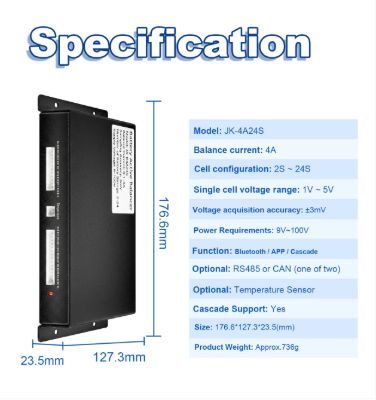

Technical Specifications
Cell count2S ~ 24S
Balancing current4A (constant)
Cell voltage range1V ~ 5V
Voltage accuracy±3mV
External power supplyDC 9~100V
Power-on switchYes
Description
When 2A isn't fast enough, the JK-B4A24S steps up. Delivering a constant 4A balancing current via ultracapacitor energy transfer, it handles larger-capacity battery packs that need faster cell equalization — keeping voltage differences minimal and the pack running at full potential.
Designed for 2 to 24 series configurations, the JK-B4A24S supports cascade installation for systems beyond 24S, and includes Bluetooth app monitoring as standard. Optional RS485 or CAN communication allows seamless integration with inverters and BMS systems.
Quick Specs
Cell count
2S ~ 24S
Balancing current
4A (constant)
Cell voltage range
1V ~ 5V
Voltage accuracy
±3mV
Product Overview
Complete product information
When 2A isn't fast enough, the JK-B4A24S steps up. Delivering a constant 4A balancing current via ultracapacitor energy transfer, it handles larger-capacity battery packs that need faster cell equalization — keeping voltage differences minimal and the pack running at full potential.
Designed for 2 to 24 series configurations, the JK-B4A24S supports cascade installation for systems beyond 24S, and includes Bluetooth app monitoring as standard. Optional RS485 or CAN communication allows seamless integration with inverters and BMS systems.
Genuine balancer-jk from Amcell
Key Features
4A constant active balancing current — twice the speed of 2A models for larger packs
Supports 2~24S configurations — LiFePO4, Li-ion, LiPo, LTO, lead-acid

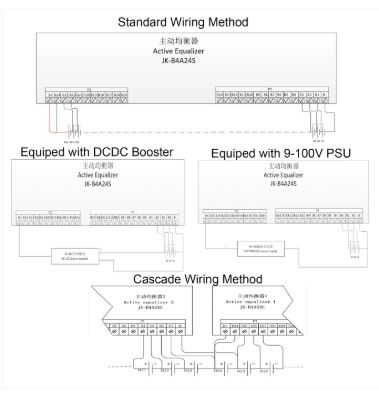

Cascade capable — expand beyond 24S by linking multiple units
High-precision voltage monitoring — ±3mV accuracy per cell
Bluetooth connectivity — monitor and configure via mobile app
Optional RS485 or CAN communication (one of two, select at order)
Optional temperature sensor input
Dimensions: 176.6 × 127.3 × 23.5 mm | Weight: 712g
₹3,800/ PCS
